The guiding holes on the ferrule end of the MPO connector play a pivotal role in the connection process.

The guiding holes on the ferrule end of the MPO connector play a pivotal role in the connection process.

Firstly, the guiding holes establish precise connections with the guiding pins (PIN pins), ensuring the alignment accuracy of optical fibers within the connector. This precise connection is crucial for maintaining stable transmission of optical signals, avoiding signal attenuation or distortion due to fiber misalignment.

www.adsscable.cn

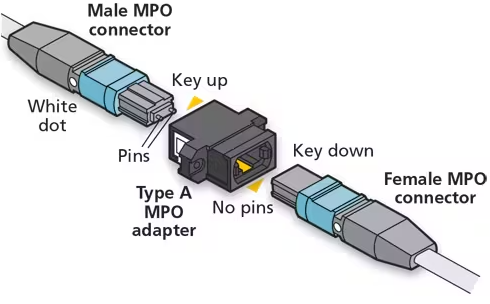

Secondly, the guiding holes also serve to restrict the relative position between the connector heads. During the mating process, the cooperation between the guiding holes and pins ensures that the connector heads connect in their predetermined positions, guaranteeing the accuracy of the fiber alignment sequence. This is crucial for enhancing the reliability and stability of fiber connections.

Moreover, to achieve optimal insertion loss, the position and precision of the guiding pins must meet stringent requirements, reaching an accuracy of 1μm. As the connection point for the guiding pins, the precision and position of the guiding holes are equally important, playing a key role in ensuring the overall performance of the connector.

www.adsscable.cn

In summary, the guiding holes on the ferrule end of the MPO connector play a crucial role in precise alignment, restricting relative positions, and ensuring connection performance during fiber connections. These functions enable the MPO connector to transmit optical signals stably and efficiently, meeting the demands of data centers and other application scenarios.www.adsscable.cn
